Timing Belts

SUPER TORQUE G PLUS

SUPER TORQUE G PLUS is the next-generation standard timing belt featuring the STPD tooth profile.

By incorporating a high-hardness synthetic rubber compound, it delivers approximately 1.8 times higher power transmission capacity compared with the conventional SUPER TORQUE G.

In addition, its compatibility with smaller pulleys and wider allowable installation tension range enhances design flexibility and ease of use, contributing to more reliable power transmission in a wide variety of industrial applications.

※STPD tooth profile: The proprietary tooth profile used in SUPER TORQUE timing belts.

Product Details

Features

Higher Power Transmission Capacity

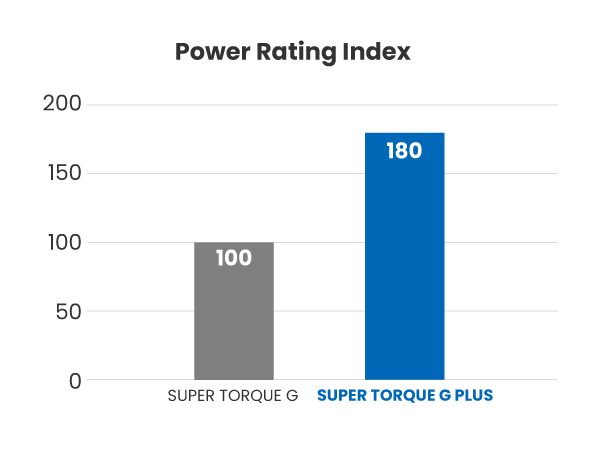

By utilizing a newly developed high-hardness synthetic rubber compound, SUPER TORQUE G PLUS achieves approximately 1.8 times the power transmission capacity of SUPER TORQUE G.

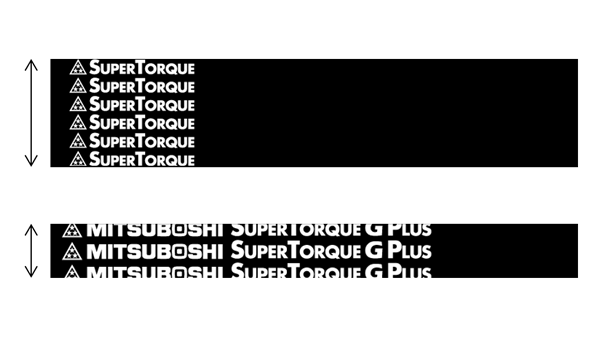

Enables Reduced Belt Widths

Its higher power transmission capability allows the use of narrower belt widths.
This contributes to more compact machine designs and lighter pulley systems, helping reduce overall equipment size and weight.

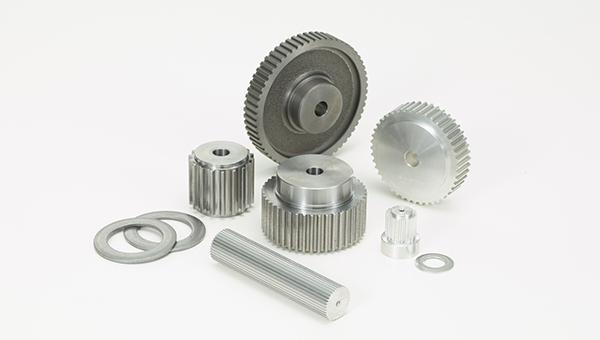

Compatible with Standard Pulleys

ISO-compliant standard pulleys can be used without modification.
Existing pulley systems can be retained, eliminating the need for equipment changes or redesigns.

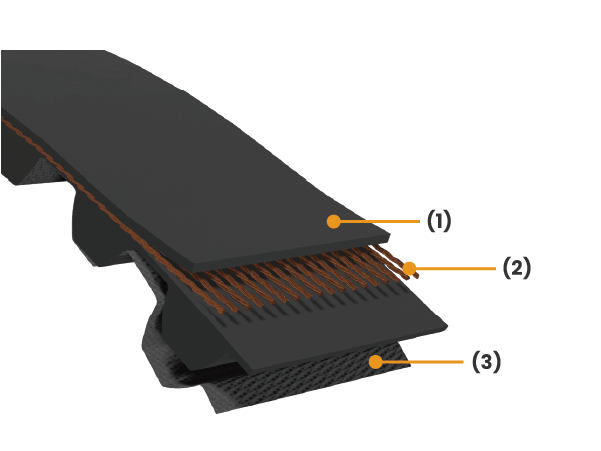

Constituent Materials

(1) Rubber
(2) Cord
(3) Tooth Fabric

	SUPER TORQUE G PLUS

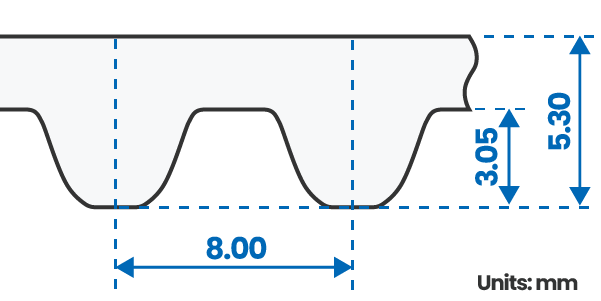

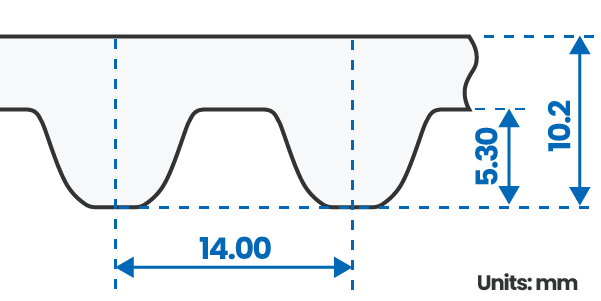

Belt Type	S8M	S14M
(1) Rubber	High-Hardness Synthetic Rubber
(2) Cord	Glass fiber
(3) Tooth Fabric	Nylon
Double-Sided Type Availability	―	―
Compatible with Standard Pulleys	○	○
