Timing Belts

MEGA TORQUE GII

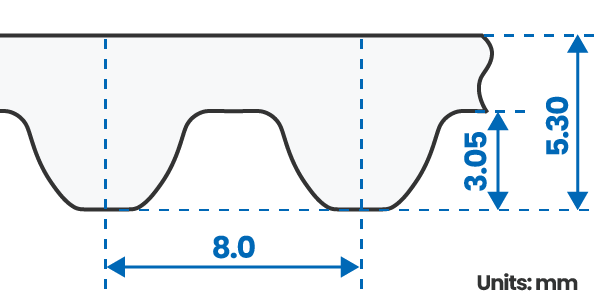

MEGA TORQUE GII is a timing belt with a round tooth profile (STPD tooth profile) that enables high-load power transmission through the use of a specially formulated rubber compound.

Compared to the conventional MEGA TORQUE G, it delivers approximately 1.5 times higher transmission capacity for MTS3M, approximately 1.3 times for MTS5M, and approximately 1.5 times for MTS8M. This allows for a narrower belt width, contributing to more compact, lightweight, and lower-noise equipment designs.

* STPD tooth profile: Tooth profile used for Super Torque Timing Belts.

Product Details

Features

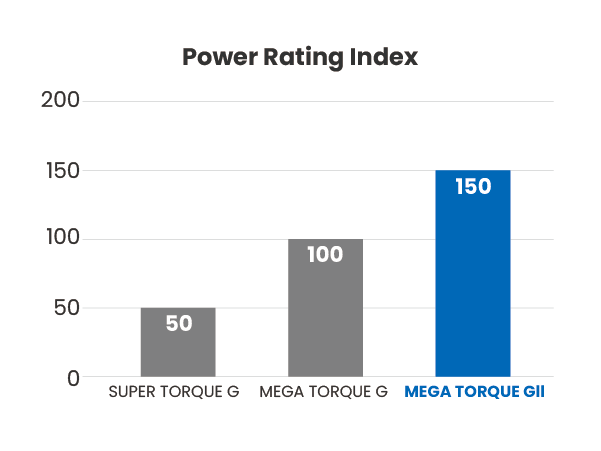

High Power Rating

Compared to our Mega Torque G timing belt, it is possible to transmit a load that is approximately 1.5 times higher.

* MTS5M provides approximately 1.3 times higher transmission capacity compared to the MEGA TORQUE G timing belt.

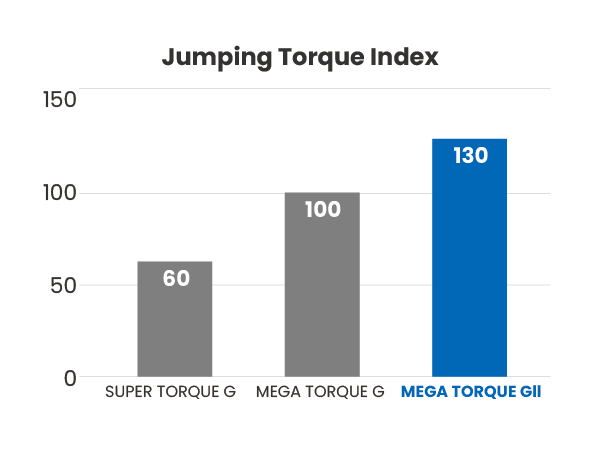

High Jumping Torque

Compared to our Mega Torque G timing belt, it achieves a jumping torque characteristic that is approximately 1.3 times greater.

* For MTS8M only.

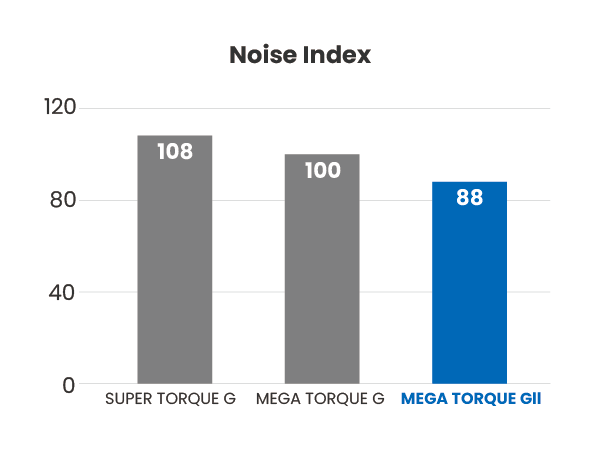

Low Noise

Compared to the Mega Torque G timing belt, noise has been reduced by approximately 12%.

* For MTS8M only.

Constituent Materials

(1) Rubber
(2) Cord
(3) Tooth Fabric

	MEGA TORQUE G				MEGA TORQUE GII			MEGA TORQUE GIIP	MEGA TORQUE GIII		MEGA TORQUE EX
Belt Type	MTS3M	MTS5M	MTS8M	MTS14M	MTS3M	MTS5M	MTS8M	MTS14M	MTS8M	MTS14M	MTS3M	MTS5M
(1) Rubber	Chloroprene		High Hardness Synthetic Rubber		High Hardness Synthetic Rubber			High Hardness Synthetic Rubber	Super High Hardness Synthetic Rubber		HNBR
(2) Cord	Glass fiber				Glass fiber		Carbon	Carbon	Carbon		Carbon
(3) Tooth Fabric	Nylon (※Bareback)		Nylon		Nylon		Nylon/Aramid	Nylon/Teflon	Nylon/Teflon		Nylon/Teflon	Nylon
Pulley Tooth Profile	Standard	Special	Standard		Standard		Special	Special	Standard		Special
