V-belts for Agricultural Machinery

Raw Edge type

SUPER AG-COG 20 Plus

SUPER AG-COG 20 Plus has superior flexibility and improved durability compared to Orange Label Cogged V-belt and SUPER AG-COG 4

By using high-hardness chloroprene rubber, it further enhances abrasion resistance compared to SUPER AG-COG 4.

It has excellent impact resistance due to the use of special aramid tensile cord.

Catalog

Contact us about this product

Product Details

Features

- Superior flexibility and improved durability.
- High abrasion resistance by applying high hardness chloroprene rubber.
- Raw Edge design with no fabric on the sides provides high grip and high transmission.
- Special aramid cord provides superior impact resistance.

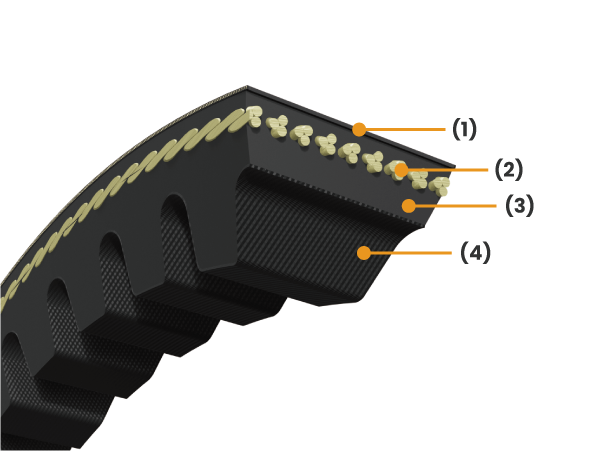

Constituent Materials

Raw Edge type
SUPER AG-COG 20 Plus

(1) Cover fabric: Special fabric with super abrasion resistance
(2) Cord: Special Aramid
(3) V-core rubber: High hardness chloroprene rubber
(4) Bottom fabric: Reinforced fabric

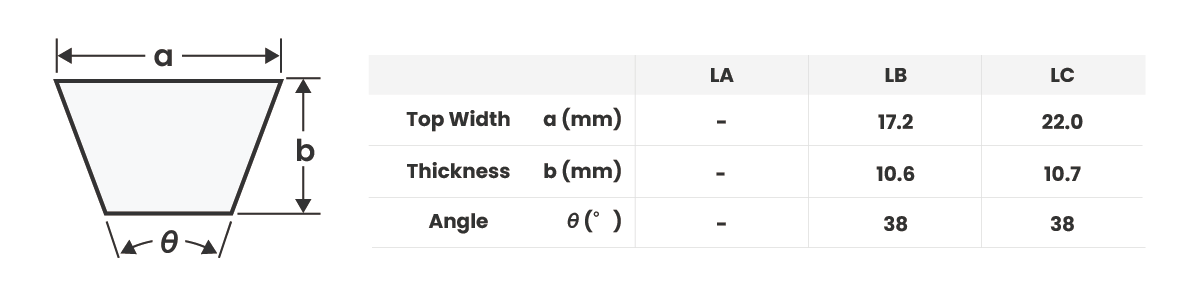

Cross Sectional Dimension

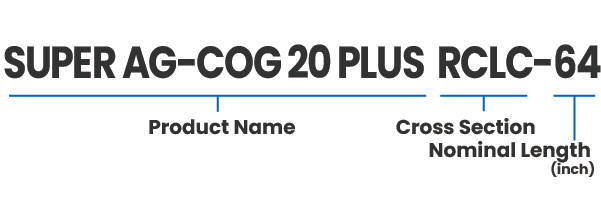

Product Code

SUPER AG-COG 20 Plus

Product Introduction Video

Combine harvester
lawn mower

Product Lineup

製品体系図

V-belts for Agricultural Machinery (types: LA, LB, LC, RCLA, RCLB, RCLC) Lineup
